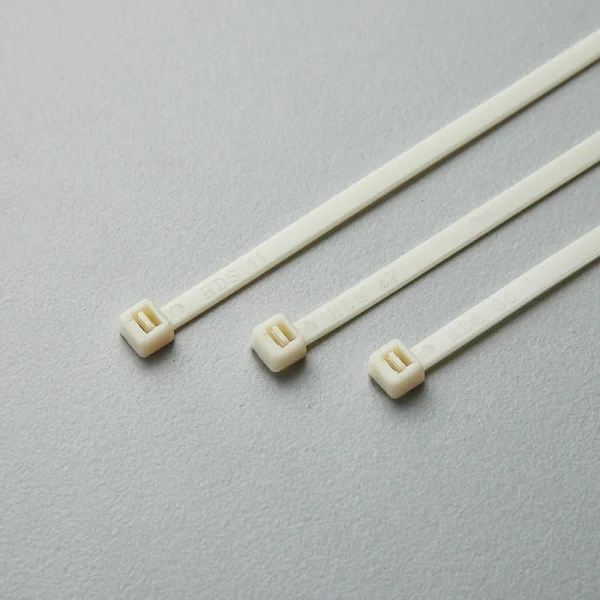

材质：华达HUADA耐高温尼龙扎带采用UL认可的尼龙66（PA66）制成
特点：可以在超高温度下使用
最高使用温度：120℃（可定制180℃）
颜色：本色（浅黄色）、黑色，特殊颜色欢迎定制
不含卤素、不含硅
RoHS认证

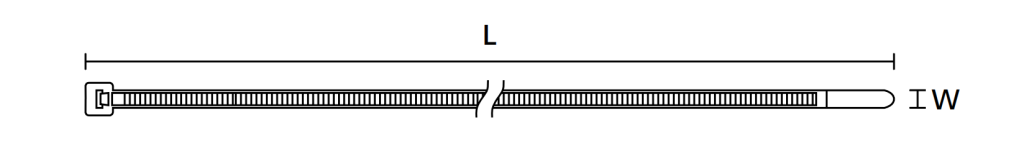

| 型号 Item NO. | 长 (L) | 宽 (W) (mm) |
最大捆扎范围 Max.Bundle DIA.(mm) |
拉力Tension | 数量/包 | ||
| Inch | mm | lbs | kgs | ||||
| HDS-3x80H | 3 3/16” | 80 | 2.4 | 16 | 18 | 8 | 1000 |
| HDS-3x100H | 4‘’ | 100 | 2.4 | 22 | 18 | 8 | 1000 |
| HDS-3x120H | 4 3/4” | 120 | 2.4 | 30 | 18 | 8 | 1000 |
| HDS-3x150H | 6” | 150 | 2.5 | 35 | 18 | 8 | 1000 |
| HDS-3x160H | 6 1/4” | 160 | 2.5 | 40 | 18 | 8 | 500 |
| HDS-3x200H | 8” | 200 | 2.4 | 50 | 18 | 8 | 1000 |
| HDS-4x100H | 4” | 100 | 3.6 | 22 | 40 | 18 | 500 |
| HDS-4x120H | 4 3/4” | 120 | 3.6 | 30 | 40 | 18 | 500 |
| HDS-4x150H | 6” | 150 | 3.6 | 35 | 40 | 18 | 500 |
| HDS-4x180H | 7” | 180 | 3.6 | 42 | 40 | 18 | 500 |
| HDS-4x200H | 8” | 200 | 3.4 | 50 | 40 | 18 | 500 |
| HDS-4x250H | 10” | 250 | 3.4 | 65 | 40 | 18 | 500 |
| HDS-4x300H | 11 5/8” | 300 | 3.6 | 80 | 40 | 18 | 500 |
| HDS-4x370H | 14 1/2” | 370 | 3.5 | 102 | 40 | 18 | 250 |
| HDS-5x120H | 4 3/4” | 120 | 4.8 | 24 | 50 | 22 | 500 |
| HDS-5x150H | 6” | 150 | 4.8 | 35 | 50 | 22 | 500 |
| HDS-5x180H | 7” | 180 | 4.8 | 42 | 50 | 22 | 500 |
| HDS-5x200H | 8” | 200 | 4.8 | 50 | 50 | 22 | 500 |
| HDS-5x250H | 10” | 250 | 4.8 | 65 | 50 | 22 | 250 |
| HDS-5x280H | 11” | 280 | 4.8 | 70 | 50 | 22 | 250 |
| HDS-5x300H | 11 5/8” | 300 | 4.8 | 82 | 50 | 22 | 250 |
| HDS-5x350H | 13 3/4” | 350 | 4.8 | 90 | 50 | 22 | 250 |
| HDS-5x360H | 14” | 360 | 4.8 | 95 | 50 | 22 | 250 |
| HDS-5x370H | 15” | 370 | 4.8 | 102 | 50 | 22 | 250 |
| HDS-5x400H | 15 3/4” | 400 | 4.8 | 105 | 50 | 22 | 250 |
| HDS-5x430H | 17” | 430 | 4.8 | 115 | 50 | 22 | 250 |
| HDS-5x450H | 17 3/4” | 450 | 4.8 | 130 | 50 | 22 | 250 |
| HDS-5x500H | 19 11/16” | 500 | 4.8 | 150 | 50 | 22 | 250 |
| HDS-5x550H | 22 10/16” | 550 | 4.8 | 175 | 50 | 22 | 250 |
| HDS-5x600H | 6” | 600 | 4.8 | 33 | 50 | 22 | 250 |
| HDS-5x650H | 25 19⁄32” | 650 | 4.8 | 42 | 50 | 22 | 250 |
| HDS-8x250H | 10” | 250 | 7.6 | 63 | 120 | 55 | 100 |
| HDS-8x300H | 11 5/8” | 300 | 7.6 | 82 | 120 | 55 | 100 |
| HDS-8x350H | 13 3/4” | 350 | 7.6 | 90 | 120 | 55 | 100 |
| HDS-8x370H | 15” | 370 | 7.6 | 98 | 120 | 55 | 100 |
| HDS-8x400H | 15 3/4” | 400 | 7.6 | 105 | 120 | 55 | 100 |
| HDS-8x450H | 17 3/4” | 450 | 7.6 | 118 | 120 | 55 | 100 |
| HDS-8x500H | 19 11/16” | 500 | 7.6 | 150 | 120 | 55 | 100 |
| HDS-8x550H | 22 10/16” | 550 | 7.6 | 165 | 120 | 55 | 100 |
| HDS-8x600H | 6” | 600 | 7.6 | 170 | 120 | 55 | 100 |
| HDS-8x650H | 25 19/32” | 650 | 7.6 | 190 | 120 | 55 | 100 |
| HDS-8x720H | 27 1/2” | 720 | 7.8 | 210 | 120 | 55 | 100 |
| HDS-8x760H | 29 1/2” | 760 | 7.6 | 220 | 120 | 55 | 100 |
| HDS-10x400H | 15 3/4” | 400 | 9.0 | 105 | 175 | 80 | 100 |
| HDS-10x450H | 17 3/4” | 450 | 9.0 | 125 | 175 | 80 | 100 |
| HDS-10x500H | 19 11/16” | 500 | 9.0 | 145 | 175 | 80 | 100 |
| HDS-10x550H | 22 10/16” | 550 | 9.0 | 165 | 175 | 80 | 100 |
| HDS-10x600H | 6” | 600 | 9.0 | 175 | 175 | 80 | 100 |
| HDS-10x650H | 25 19⁄32” | 650 | 9.0 | 190 | 175 | 80 | 100 |
| HDS-10x720H | 27 1/2” | 720 | 9.0 | 210 | 175 | 80 | 100 |
| HDS-10x760H | 29 1/2” | 760 | 8.8 | 220 | 175 | 80 | 100 |
| HDS-10x800H | 31 1/2” | 800 | 8.8 | 225 | 175 | 80 | 100 |
| HDS-10x920H | 36 7/32” | 920 | 9.0 | 265 | 175 | 80 | 100 |
| HDS-10x1020H | 40 5/32” | 1020 | 9.0 | 295 | 175 | 80 | 100 |
| HDS-10x1200H | 47 1/4” | 1200 | 9.0 | 320 | 175 | 80 | 100 |
| HDS-10x1300H | 51 3/16” | 1300 | 9.0 | 330 | 175 | 80 | 100 |
| HDS-10x1500H | 59 1/16” | 1500 | 9.0 | 460 | 175 | 80 | 50 |
| HDS-12x300H | 11 5/8” | 300 | 12.0 | 80 | 200 | 91 | 50 |
| HDS-12x400H | 15 3/4” | 400 | 12.0 | 105 | 200 | 91 | 50 |
| HDS-12x500H | 19 11/16” | 500 | 12.0 | 150 | 200 | 91 | 50 |
| HDS-12x600H | 6” | 600 | 12.0 | 175 | 200 | 91 | 50 |
| HDS-12x650H | 25 19⁄32” | 650 | 12.0 | 190 | 200 | 91 | 50 |
| HDS-12x750H | 29 17/32” | 750 | 12.0 | 220 | 200 | 91 | 50 |
| HDS-12x800H | 31 1/2” | 800 | 12.0 | 225 | 200 | 91 | 50 |
