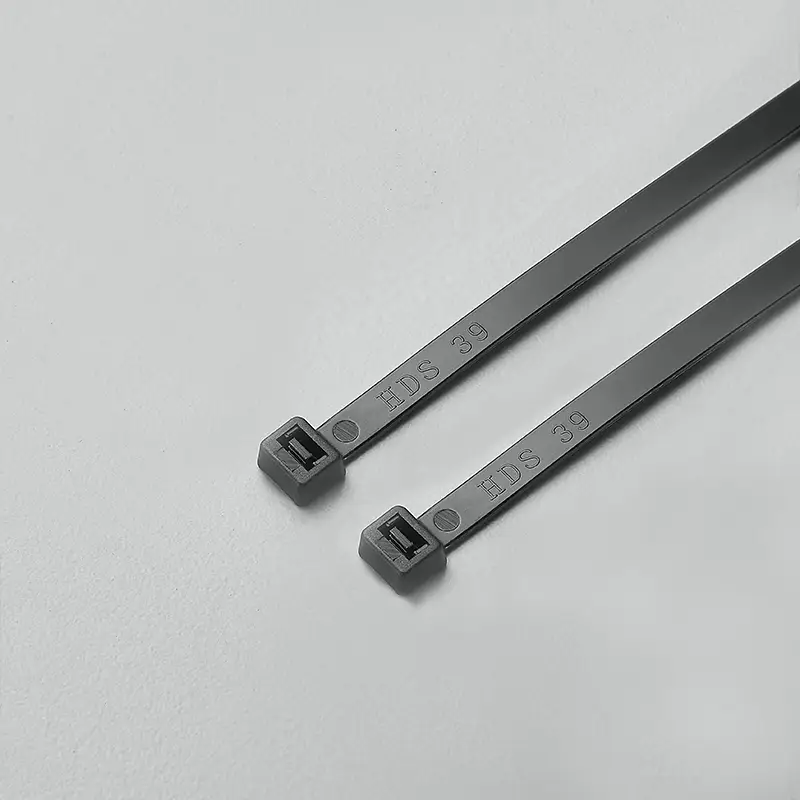

耐高低温扎带采用UL认证的耐温PA66材质，专为极端温度环境设计，可在 -40°C 至 +150°C 的温度范围内使用。具备优异的抗拉强度和韧性，即使在严寒或高温条件下也不易脆化或断裂。常应用于汽车领域，如发动机舱、电缆捆扎和管道固定等，是高低温环境下的理想捆扎解决方案。

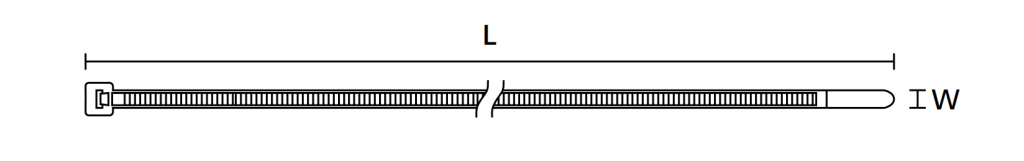

| 型号 Item No. |
长度 Length |
宽度 Width |
最大束径 Max.Bundle Range |
最小拉力值 Min. Tensile Strength |
||
| inch | mm | mm | mm | lbs | kgs | |
| HDS-3×80HC | 3.2 | 80 | 2.5 | 16 | 18 | 8 |
| HDS-3×100HC | 3.9 | 100 | 2.5 | 22 | 18 | 8 |
| HDS-3×120HC | 4.7 | 120 | 2.5 | 30 | 18 | 8 |
| HDS-3×150HC | 5.9 | 150 | 2.5 | 35 | 18 | 8 |
| HDS-3×160HC | 6.3 | 160 | 2.5 | 40 | 18 | 8 |
| HDS-3×200HC | 7.9 | 200 | 2.4 | 50 | 18 | 8 |
| HDS-4×100HC | 3.9 | 100 | 3.6 | 22 | 40 | 18 |
| HDS-4×120HC | 4.7 | 120 | 3.6 | 30 | 40 | 18 |
| HDS-4×150HC | 5.9 | 150 | 3.6 | 35 | 40 | 18 |
| HDS-4×180HC | 7.1 | 180 | 3.6 | 42 | 40 | 18 |
| HDS-4×200HC | 7.9 | 200 | 3.6 | 50 | 40 | 18 |
| HDS-4×250HC | 9.9 | 250 | 3.5 | 65 | 40 | 18 |
| HDS-4×300HC | 11.8 | 300 | 3.6 | 80 | 40 | 18 |
| HDS-4×370HC | 14.6 | 370 | 3.5 | 102 | 40 | 18 |
| HDS-5×120HC | 4.7 | 120 | 4.8 | 24 | 50 | 22 |
| HDS-5×150HC | 5.9 | 150 | 4.8 | 35 | 50 | 22 |
| HDS-5×180HC | 7.1 | 180 | 4.8 | 42 | 50 | 22 |
| HDS-5×200HC | 7.9 | 200 | 4.8 | 50 | 50 | 22 |
| HDS-5×250HC | 9.9 | 250 | 4.8 | 65 | 50 | 22 |
| HDS-5×280HC | 11.0 | 280 | 4.8 | 70 | 50 | 22 |
| HDS-5×300HC | 11.8 | 300 | 4.8 | 82 | 50 | 22 |
| HDS-5×350HC | 13.8 | 350 | 4.8 | 90 | 50 | 22 |
| HDS-5×360HC | 14.2 | 360 | 4.8 | 95 | 50 | 22 |
| HDS-5×370HC | 14.6 | 370 | 4.8 | 102 | 50 | 22 |
| HDS-5×400HC | 15.8 | 400 | 4.8 | 105 | 50 | 22 |
| HDS-5×430HC | 16.9 | 430 | 4.8 | 115 | 50 | 22 |
| HDS-5×450HC | 17.7 | 450 | 4.8 | 130 | 50 | 22 |
| HDS-5×500HC | 19.7 | 500 | 4.8 | 150 | 50 | 22 |
| HDS-5×550HC | 21.7 | 550 | 4.8 | 175 | 50 | 22 |
| HDS-5×600HC | 23.6 | 600 | 4.8 | 33 | 50 | 22 |
| HDS-5×650HC | 25.6 | 650 | 4.8 | 42 | 50 | 22 |
| HDS-8×250HC | 9.9 | 250 | 7.6 | 63 | 120 | 55 |
| HDS-8×300HC | 11.8 | 300 | 7.6 | 82 | 120 | 55 |
| HDS-8×350HC | 13.8 | 350 | 7.6 | 90 | 120 | 55 |
| HDS-8×370HC | 14.6 | 370 | 7.6 | 98 | 120 | 55 |
| HDS-8×400HC | 15.8 | 400 | 7.6 | 105 | 120 | 55 |
| HDS-8×450HC | 17.7 | 450 | 7.6 | 118 | 120 | 55 |
| HDS-8×500HC | 19.7 | 500 | 7.6 | 150 | 120 | 55 |
| HDS-8×550HC | 21.7 | 550 | 7.6 | 165 | 120 | 55 |
| HDS-8×600HC | 23.6 | 600 | 7.6 | 170 | 120 | 55 |
| HDS-8×650HC | 25.6 | 650 | 7.6 | 190 | 120 | 55 |
| HDS-8×720HC | 28.4 | 720 | 7.8 | 210 | 120 | 55 |
| HDS-8×760HC | 29.9 | 760 | 7.6 | 220 | 120 | 55 |
| HDS-10×400HC | 15.8 | 400 | 9 | 105 | 175 | 80 |
| HDS-10×450HC | 17.7 | 450 | 9 | 125 | 175 | 80 |
| HDS-10×500HC | 19.7 | 500 | 9 | 145 | 175 | 80 |
| HDS-10×550HC | 21.7 | 550 | 9 | 165 | 175 | 80 |
| HDS-10×600HC | 23.6 | 600 | 9 | 175 | 175 | 80 |
| HDS-10×650HC | 25.6 | 650 | 9 | 190 | 175 | 80 |
| HDS-10×720HC | 28.4 | 720 | 9 | 210 | 175 | 80 |
| HDS-10×760HC | 29.9 | 760 | 8.8 | 220 | 175 | 80 |
| HDS-10×800HC | 31.5 | 800 | 8.8 | 225 | 175 | 80 |
| HDS-10×920HC | 36.3 | 920 | 9 | 265 | 175 | 80 |
| HDS-10×1020HC | 40.2 | 1020 | 9 | 295 | 175 | 80 |
| HDS-10×1200HC | 47.3 | 1200 | 9 | 320 | 175 | 80 |
| HDS-10×1300HC | 51.2 | 1300 | 9 | 330 | 175 | 80 |
| HDS-10×1500HC | 59.1 | 1500 | 9 | 460 | 175 | 80 |
| HDS-12×300HC | 11.8 | 300 | 12 | 80 | 250 | 114 |
| HDS-12×400HC | 15.8 | 400 | 12 | 105 | 250 | 114 |
| HDS-12×500HC | 19.7 | 500 | 12 | 150 | 250 | 114 |
| HDS-12×600HC | 23.6 | 600 | 12 | 175 | 250 | 114 |
| HDS-12×650HC | 25.6 | 650 | 12 | 190 | 250 | 114 |
| HDS-12×750HC | 29.6 | 750 | 12 | 220 | 250 | 114 |
| HDS-12×800HC | 31.5 | 800 | 12 | 225 | 250 | 114 |
