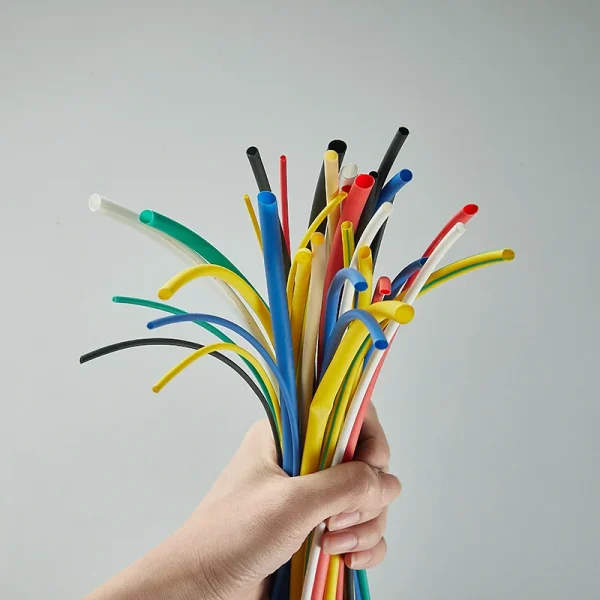

1kV单壁热缩管是一种环保型热缩材料，采用无卤素交联聚烯烃制成，不含卤素和红磷成分，符合环保标准。它主要用于对阻燃性要求较低的场景，具有良好的电气绝缘性能和机械保护功能。该热缩管具有柔韧性高、耐磨性强、耐腐蚀等特点，适用于各种电缆捆扎、线束保护及一般工业应用。
| 规格 Size |
电压等级 Voltage level |
供货内径(mm) Min. Supplied I.D. |
全缩后尺寸(mm) After Recovered |
标准包装 Standard Package |
|
| mm | 内径 I.D.(MAX.) |
壁厚 Wall Thickness |
(米/盘) (m/roll) |
||
| Φ1.0 | 1kV | 1.50±0.20 | ≤0.65 | 0.36±0.10 | 200 |
| Φ1.5 | 1kV | 2.00±0.20 | ≤0.85 | 0.36±0.10 | 200 |
| Φ2.0 | 1kV | 2.50±0.20 | ≤1.00 | 0.44±0.10 | 200 |
| Φ2.5 | 1kV | 3.00±0.20 | ≤1.3 | 0.44±0.10 | 200 |
| Φ3.0 | 1kV | 3.50±0.20 | ≤1.5 | 0.44±0.10 | 200 |
| Φ3.5 | 1kV | 4.00±0.20 | ≤1.80 | 0.44±0.10 | 200 |
| Φ4.0 | 1kV | 4.50±0.20 | ≤2.00 | 0.44±0.10 | 200 |
| Φ4.5 | 1kV | 5.00±0.20 | ≤2.30 | 0.44±0.10 | 200 |
| Φ5 | 1kV | 5.50±0.20 | ≤2.5 | 0.56±0.10 | 100 |
| Φ6 | 1kV | 6.50±0.20 | ≤3 | 0.56±0.10 | 100 |
| Φ7 | 1kV | 7.50±0.30 | ≤3.5 | 0.56±0.10 | 100 |
| Φ8 | 1kV | 8.50±0.30 | ≤4.0 | 0.56±0.10 | 100 |
| Φ9 | 1kV | 9.50±0.30 | ≤4.5 | 0.56±0.10 | 100 |
| Φ10 | 1kV | 10.50±0.30 | ≤5.0 | 0.56±0.10 | 100 |
| Φ12 | 1kV | 12.50±0.30 | ≤6 | 0.56±0.10 | 100 |
| Φ14 | 1kV | 14.50±0.30 | ≤7.0 | 0.70±0.10 | 100 |
| Φ15 | 1kV | 15.50±0.40 | ≤7.5 | 0.70±0.15 | 100 |
| Φ16 | 1kV | 16.50±0.40 | ≤8.0 | 0.70±0.15 | 100 |
| Φ18 | 1kV | 19.00±0.50 | ≤9 | 0.70±0.15 | 100 |
| Φ20 | 1kV | 21.00±0.50 | ≤10.0 | 0.80±0.15 | 100 |
| Φ22 | 1kV | 23.00±0.50 | ≤11 | 0.80±0.15 | 100 |
| Φ25 | 1kV | 26.00±0.50 | ≤12.5 | 0.90±0.15 | 25 |
| Φ28 | 1kV | 29.00±0.50 | ≤14.0 | 0.90±0.15 | 25 |
| Φ30 | 1kV | 31.50±0.50 | ≤15.0 | 1.00±0.15 | 25 |
| Φ35 | 1kV | 36.00±0.50 | ≤17.5 | 1.00±0.15 | 25 |
| Φ40 | 1kV | 41.00±0.50 | ≤20.0 | 1.00±0.15 | 25 |
| Φ45 | 1kV | 46.5±1.5 | ≤22.5 | 1.00±0.15 | 25 |
| Φ50 | 1kV | ≥50 | ≤25 | 1.10±0.15 | 25 |
| Φ60 | 1kV | ≥60 | ≤30.0 | 1.10±0.15 | 25 |
| Φ70 | 1kV | ≥70 | ≤35.0 | 1.20±0.15 | 25 |
| Φ80 | 1kV | ≥80 | ≤40 | 1.30±0.20 | 25 |
| Φ90 | 1kV | ≥90 | ≤45.5 | 1.30±0.20 | 25 |
| Φ100 | 1kV | ≥100 | ≤50 | 1.30±0.20 | 25 |
| Φ120 | 1kV | ≥120 | ≤60.0 | 1.30±0.20 | 25 |
| Φ150 | 1kV | ≥150 | ≤75 | 1.30±0.20 | 25 |
| Φ180 | 1kV | ≥180 | ≤90.0 | 1.30±0.20 | 25 |
