描述

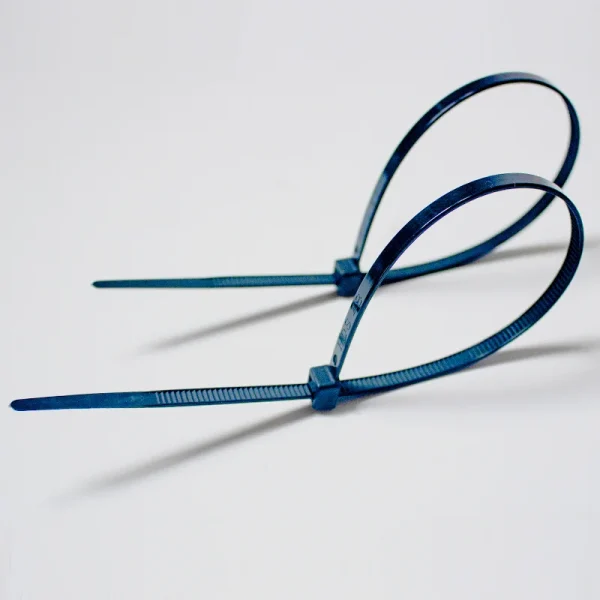

材质：华达耐寒尼龙扎带采用UL认可的尼龙66（PA66）新料制成
特点：相较于普通扎带更加耐寒，更适用于低温环境下使用
最低使用温度：-20℃；最低操作温度：-40℃
颜色：标准颜色为白色、黑色。特殊颜色欢迎定做。
不含卤素、不含硅
RoHS认证
| 型号 Item NO. | 长 (L) | 宽 (W) (mm) |
最大捆扎范围 Max.Bundle DIA.(mm) |
拉力Tension | 数量/包 | ||
| Inch | mm | lbs | kgs | ||||
| HDS-3x80C | 3 3/16” | 80 | 2.4 | 16 | 18 | 8 | 1000 |
| HDS-3x100C | 4‘’ | 100 | 2.4 | 22 | 18 | 8 | 1000 |
| HDS-3x120C | 4 3/4” | 120 | 2.4 | 30 | 18 | 8 | 1000 |
| HDS-3x150C | 6” | 150 | 2.5 | 35 | 18 | 8 | 1000 |
| HDS-3x160C | 6 1/4” | 160 | 2.5 | 40 | 18 | 8 | 500 |
| HDS-3x200C | 8” | 200 | 2.4 | 50 | 18 | 8 | 1000 |
| HDS-4x100C | 4” | 100 | 3.6 | 22 | 40 | 18 | 500 |
| HDS-4x120C | 4 3/4” | 120 | 3.6 | 30 | 40 | 18 | 500 |
| HDS-4x150C | 6” | 150 | 3.6 | 35 | 40 | 18 | 500 |
| HDS-4x180C | 7” | 180 | 3.6 | 42 | 40 | 18 | 500 |
| HDS-4x200C | 8” | 200 | 3.4 | 50 | 40 | 18 | 500 |
| HDS-4x250C | 10” | 250 | 3.4 | 65 | 40 | 18 | 500 |
| HDS-4x300C | 11 5/8” | 300 | 3.6 | 80 | 40 | 18 | 500 |
| HDS-4x370C | 14 1/2” | 370 | 3.5 | 102 | 40 | 18 | 250 |
| HDS-5x120C | 4 3/4” | 120 | 4.8 | 24 | 50 | 22 | 500 |
| HDS-5x150C | 6” | 150 | 4.8 | 35 | 50 | 22 | 500 |
| HDS-5x180C | 7” | 180 | 4.8 | 42 | 50 | 22 | 500 |
| HDS-5x200C | 8” | 200 | 4.8 | 50 | 50 | 22 | 500 |
| HDS-5x250C | 10” | 250 | 4.8 | 65 | 50 | 22 | 250 |
| HDS-5x280C | 11” | 280 | 4.8 | 70 | 50 | 22 | 250 |
| HDS-5x300C | 11 5/8” | 300 | 4.8 | 82 | 50 | 22 | 250 |
| HDS-5x350C | 13 3/4” | 350 | 4.8 | 90 | 50 | 22 | 250 |
| HDS-5x360C | 14” | 360 | 4.8 | 95 | 50 | 22 | 250 |
| HDS-5x370C | 15” | 370 | 4.8 | 102 | 50 | 22 | 250 |
| HDS-5x400C | 15 3/4” | 400 | 4.8 | 105 | 50 | 22 | 250 |
| HDS-5x430C | 17” | 430 | 4.8 | 115 | 50 | 22 | 250 |
| HDS-5x450C | 17 3/4” | 450 | 4.8 | 130 | 50 | 22 | 250 |
| HDS-5x500C | 19 11/16” | 500 | 4.8 | 150 | 50 | 22 | 250 |
| HDS-5x550C | 22 10/16” | 550 | 4.8 | 175 | 50 | 22 | 250 |
| HDS-5x600C | 6” | 600 | 4.8 | 33 | 50 | 22 | 250 |
| HDS-5x650C | 25 19⁄32” | 650 | 4.8 | 42 | 50 | 22 | 250 |
| HDS-8x250C | 10” | 250 | 7.6 | 63 | 120 | 55 | 100 |
| HDS-8x300C | 11 5/8” | 300 | 7.6 | 82 | 120 | 55 | 100 |
| HDS-8x350C | 13 3/4” | 350 | 7.6 | 90 | 120 | 55 | 100 |
| HDS-8x370C | 15” | 370 | 7.6 | 98 | 120 | 55 | 100 |
| HDS-8x400C | 15 3/4” | 400 | 7.6 | 105 | 120 | 55 | 100 |
| HDS-8x450C | 17 3/4” | 450 | 7.6 | 118 | 120 | 55 | 100 |
| HDS-8x500C | 19 11/16” | 500 | 7.6 | 150 | 120 | 55 | 100 |
| HDS-8x550C | 22 10/16” | 550 | 7.6 | 165 | 120 | 55 | 100 |
| HDS-8x600C | 6” | 600 | 7.6 | 170 | 120 | 55 | 100 |
| HDS-8x650C | 25 19/32” | 650 | 7.6 | 190 | 120 | 55 | 100 |
| HDS-8x720C | 27 1/2” | 720 | 7.8 | 210 | 120 | 55 | 100 |
| HDS-8x760C | 29 1/2” | 760 | 7.6 | 220 | 120 | 55 | 100 |
| HDS-10x400C | 15 3/4” | 400 | 9.0 | 105 | 175 | 80 | 100 |
| HDS-10x450C | 17 3/4” | 450 | 9.0 | 125 | 175 | 80 | 100 |
| HDS-10x500C | 19 11/16” | 500 | 9.0 | 145 | 175 | 80 | 100 |
| HDS-10x550C | 22 10/16” | 550 | 9.0 | 165 | 175 | 80 | 100 |
| HDS-10x600C | 6” | 600 | 9.0 | 175 | 175 | 80 | 100 |
| HDS-10x650C | 25 19⁄32” | 650 | 9.0 | 190 | 175 | 80 | 100 |
| HDS-10x720C | 27 1/2” | 720 | 9.0 | 210 | 175 | 80 | 100 |
| HDS-10x760C | 29 1/2” | 760 | 8.8 | 220 | 175 | 80 | 100 |
| HDS-10x800C | 31 1/2” | 800 | 8.8 | 225 | 175 | 80 | 100 |
| HDS-10x920C | 36 7/32” | 920 | 9.0 | 265 | 175 | 80 | 100 |
| HDS-10x1020C | 40 5/32” | 1020 | 9.0 | 295 | 175 | 80 | 100 |
| HDS-10x1200C | 47 1/4” | 1200 | 9.0 | 320 | 175 | 80 | 100 |
| HDS-10x1300C | 51 3/16” | 1300 | 9.0 | 330 | 175 | 80 | 100 |
| HDS-10x1500C | 59 1/16” | 1500 | 9.0 | 460 | 175 | 80 | 50 |
| HDS-12x300C | 11 5/8” | 300 | 12.0 | 80 | 200 | 91 | 50 |
| HDS-12x400C | 15 3/4” | 400 | 12.0 | 105 | 200 | 91 | 50 |
| HDS-12x500C | 19 11/16” | 500 | 12.0 | 150 | 200 | 91 | 50 |
| HDS-12x600C | 6” | 600 | 12.0 | 175 | 200 | 91 | 50 |
| HDS-12x650C | 25 19⁄32” | 650 | 12.0 | 190 | 200 | 91 | 50 |
| HDS-12x750C | 29 17/32” | 750 | 12.0 | 220 | 200 | 91 | 50 |
| HDS-12x800C | 31 1/2” | 800 | 12.0 | 225 | 200 | 91 | 50 |
